Product Details:
Payment & Shipping Terms:
|
| Application: | Heat Exchanger,Pressure Vessel,Fluid Machinery | Weight: | 50Kg-15000Kg |
|---|---|---|---|
| Heat Treatment: | Normalizing And Tempering | Machining: | Rough Machining Or Finish Maching |
| MaterialAlloy Steel 42CrMo4: | F304 | Dimensions: | Max OD Is 3000mm, |
| Highlight: | round sheet metal discs,stainless steel round discs |
||

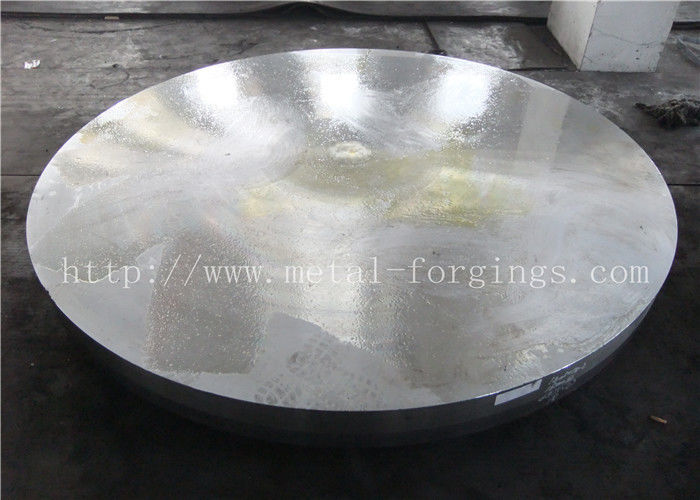

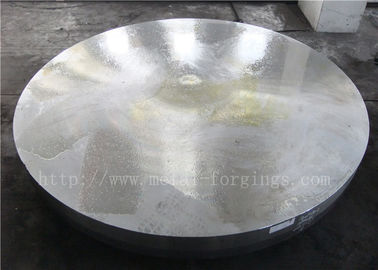

F304L Stainless Steel forge disc 50Kg-15000Kg Tensile Strength 485 Mpa
Element(%):
| F304L |
UNS S30403 |
C≤ 0.03 |
Mn≤ 2.00
|
P≤ 0.045 |
S≤ 0.035 |
Si≤1.00 |
Ni 8.0~11.0 |
Cr 18.0~20.0 |
Heat Treatment::So
| Item | Tensile Strength | Yield Strength | Elongation Rate | Reduction Of Area | Hardness |
| F304L | 485 Mpa | 170 Mpa | 20% | 50% | ... |
The main manufacturing equipments:
|
Name&Description |
Capacity |
Quantity |
|
3600Thydraulic press |
Max. single forging in 18T |
1 |
|
2000T hydraulic press |
Max. single forging in 9T |
2 |
|
800 hydraulic press |
Max. single forging in 5T |
1 |
|
6T electrical hydraulic hammer |
Max.single forging in 5T |
1 |
|
3T electrical hydraulic hammer |
Max.single forging in3T |
1 |
|
Air hammer |
Max.single forging from250kg to 1000kg |
7 |
|
Forging operation machine |
Max.singe forging from20T-5T |
7 |
|
Heat treatment Furance |
Max.8000*5000*1500mm |
11 |
|
CNC driling machine |
Max.5000mm |
2 |
|
Vertical lathe |
From 1600 to 5000mm |
60 |
|
Horizontal lathe |
Max.5000mm |
70 |
|
Band sawing machine |
260-1300mm |
36 |
Test instruments:
Certfiticates List:
| Certificates list of Jiangyin Fangyuan | ||
| ISO9001:2008 | ISO14001:2004 | PED Certificate |
| ABS Certficate | BV Certficate | DNV Certificate |
| RINA Certficate | GL Certficate | LR Certficate |
| CCS Certficate | NK Certficate | KR Certficate |
| API-6A Certficate | API-17D Certficate | CNAS Certficate |
Contact Person: Mr. fangyuan
