Product Details:
Payment & Shipping Terms:
|
| Heat Treatment: | Solution | Application: | Pressure Vessel,Ball Valve,Tube Etc |
|---|---|---|---|
| Weight: | 20Kg-10000Kg | Dimensions: | Max OD Is 2500mm, |
| Machining: | Rough Machining Or Finish Maching | Material: | F304 Stainless Steel |
| Highlight: | rolled rings manufacturers,rolled steel rings |
||

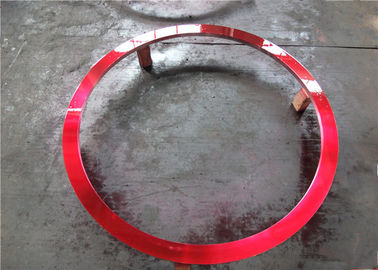

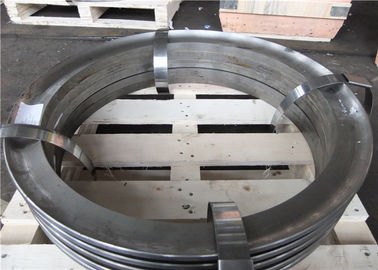

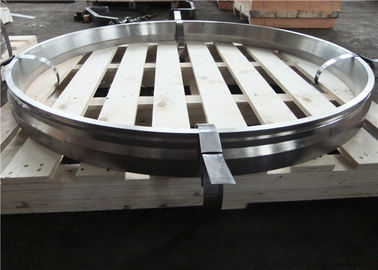

S S Forged Ring Solution / Ring Of Forging F304 ASTM / ASME-2013 SA182-F182
Application
• Nuclear reactors
• Gas turbines
• Rocket engines
• Pressure vessels
• Aircraft structures.
<1> Short Introduction:
| Largest OD:2500mm Largest Weight:15000kg Surface Finish:3.2um Ra Or As Required. Forging Reduction Min:3.1 Or As Required Rought machining or Finis Machining |
<2> Element:
| C:≤0.08% | Si≤1% |
| Mn:≤2.00% | P≤0.045% |
| S≤0.030% | Ni:8%~11% |
| Cr:18.0~20.0% |
<3> Heat Treatment:Solution
<4> Mechanical Properties:
| Item | Tensile Strength | Yield Strength | Elongation Rate | Reduction Of Area | Hardness |
| F304 | ≥515 Mpa | ≥205 Mpa | ≥30% | ≥50% | ... |
<5> The main manufacturing equipments:
|
Name&Description |
Capacity |
Quantity |
|
3600Thydraulic press |
Max. single forging in 18T |
1 |
|
2000T hydraulic press |
Max. single forging in 9T |
2 |
|
800 hydraulic press |
Max. single forging in 5T |
1 |
|
6T electrical hydraulic hammer |
Max.single forging in 5T |
1 |
|
3T electrical hydraulic hammer |
Max.single forging in3T |
1 |
|
Air hammer |
Max.single forging from250kg to 1000kg |
7 |
|
Forging operation machine |
Max.singe forging from20T-5T |
7 |
|
Heat treatment Furance |
Max.8000*5000*1500mm |
11 |
|
CNC driling machine |
Max.5000mm |
2 |
|
Vertical lathe |
From 1600 to 5000mm |
60 |
|
Horizontal lathe |
Max.5000mm |
70 |
|
Band sawing machine |
260-1300mm |
36 |
<6> Certfiticates List:
| Certificates list of Jiangyin Fangyuan | ||
| ISO9001:2008 | ISO14001:2004 | PED Certificate |
| ABS Certficate | BV Certficate | DNV Certificate |
| RINA Certficate | GL Certficate | LR Certficate |
| CCS Certficate | NK Certficate | KR Certficate |
| API-6A Certficate | API-17D Certficate | CNAS Certficate |
Contact Person: Mr. fangyuan
